µÙéÅÓ⾧ Hi end ÃØè¹ HOME TWO
ÂÕèËéÍ: SR Technology ÃËÑÊ: SRH02
µÙéÅÓ⾧ Hi end ÃØè¹ HOME TWO

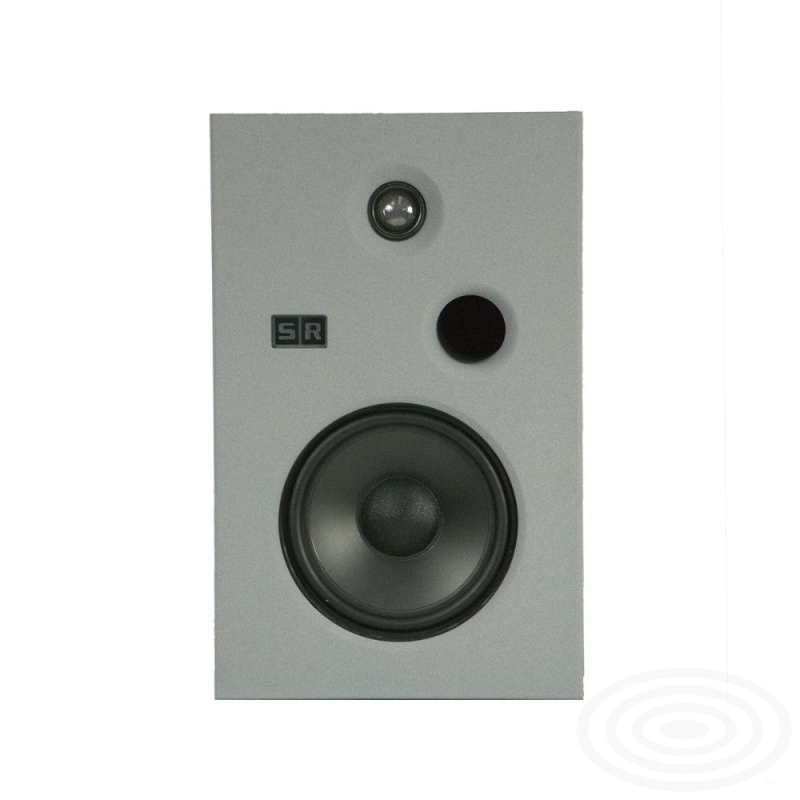

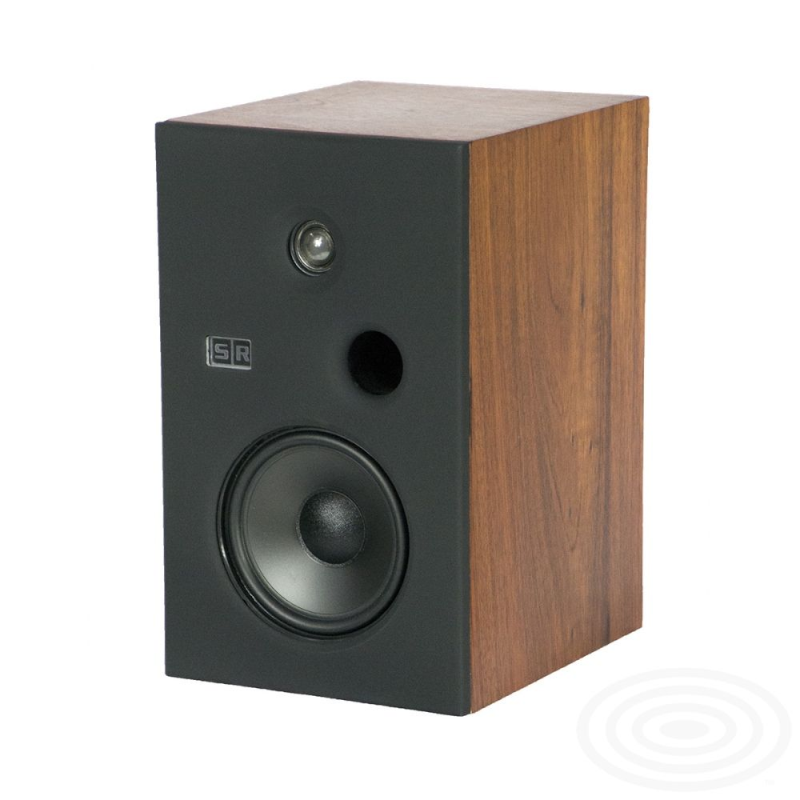

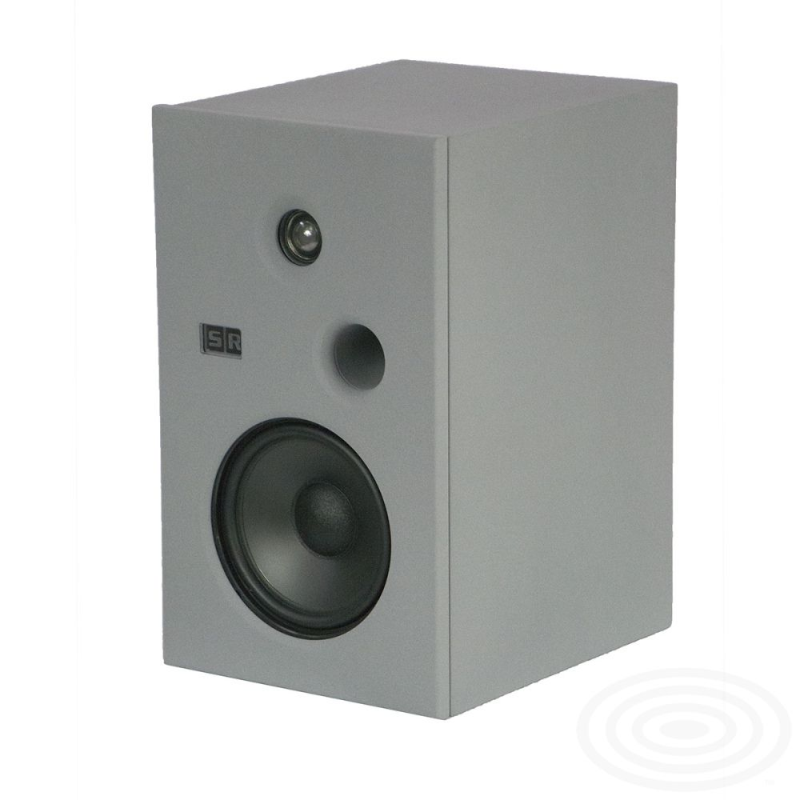

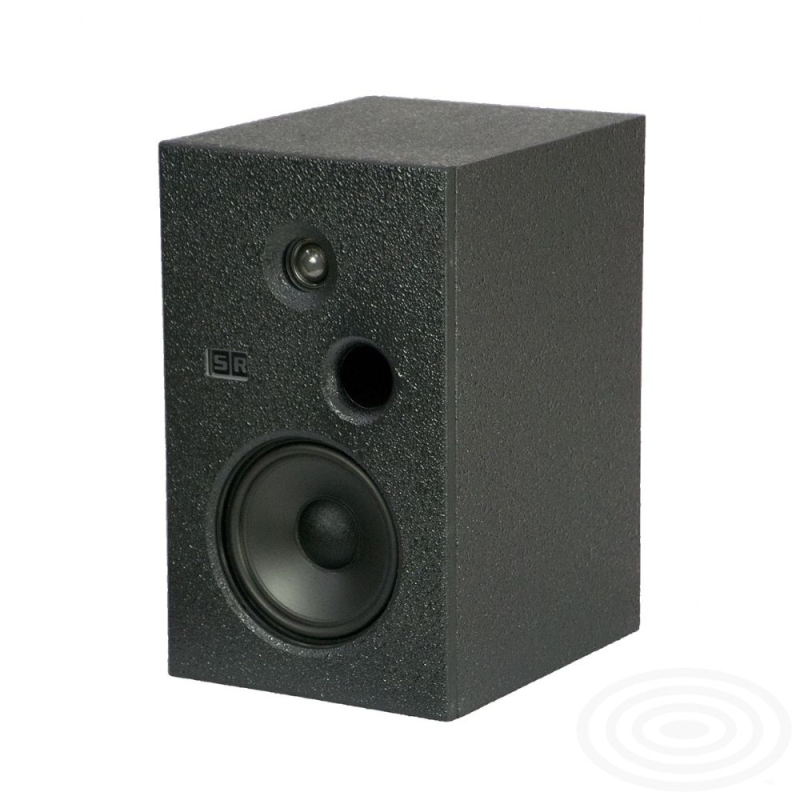

Model HOME TWO offers 60W of power and is equipped with a 6" professional woofer for a little extra bass response, and 1” dome tweeter.
Specifications HOME TWO
Frequency response 55 Hz - 22 kHz (-3 dB)
Sensitivity @ 1W/1m 90.0 dBSPL
SPL max (calc.) 108 dBSPL
Crossover Passive - 18dB/octave
2.8 kHz
LF Transducer 6" Professional Woofer
Nominal Impedance 8 Ohm.
voice coil diameter 25mm
HF Transducer dome tweeter 1" voice coil
aluminium former
Nominal Impedance 8 Ohm.
Power Handling 60W/130W (analogue)
(Continuous/Peak)
Connection XLR balanced input
RCA unbalanced input
Impedance 20 k Ohm. @ 1 kHz
in balance mode
10 k? @ 1 kHz
in unbalance mode
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
RCA -8 dBu (0.310 Vrms)
in unbalance mode
Nominal Impedance 8 Ohm.
(Passive)
Wall mounting Two metric M6 threaded
holes provided
Controls No control
Box 12mm Birch multilayer wood
Two Way Bass Reflex
with one flared end
Weight Kg 8
Dimensions (LxDxH) 226x276x374 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
