Wireless Stereo Nanoflex Soundhole System

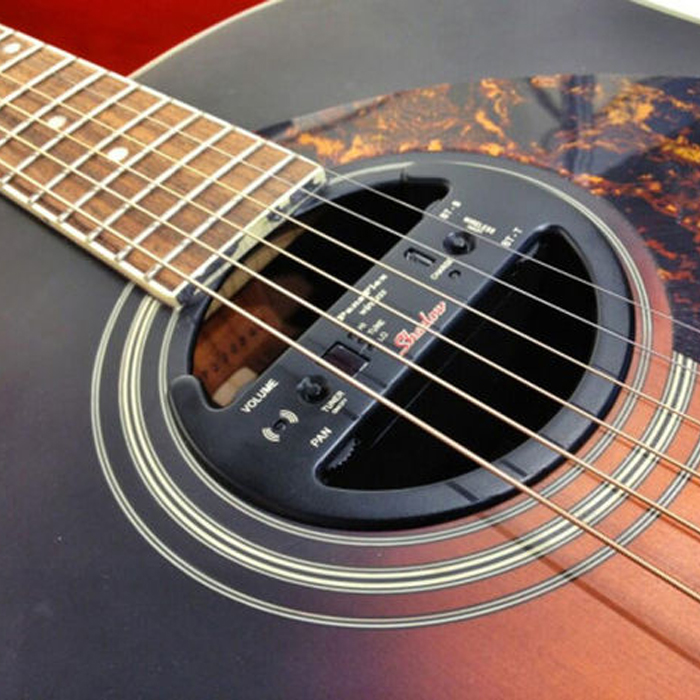

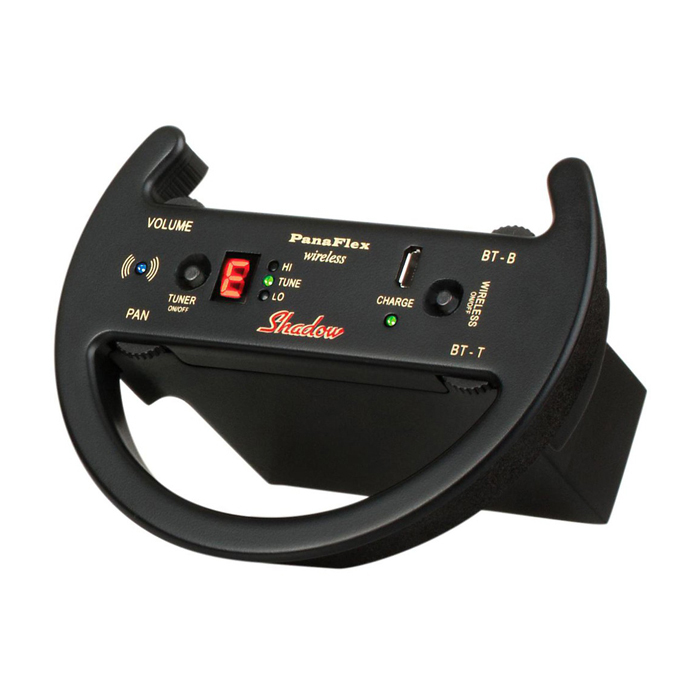

The SH PFC-W is a wireless system included with the new Panaflex (=Stereo Nanoflex) pickup. Only small modifications (pickup under the bridge only) are neccessary on the guitar. With special tapes you can mount the transmitter in all typical classic soundholes from 82mm to 90mm diameter.
The panorama control adjust the width of the stereo impression. You can add re verb effects to the treble strings where the bass strings are without effects. Secondary you can control the sound with a combined bass/treble control (B/T) for the treble AND the bass strings. The last control is to adjust the volume.

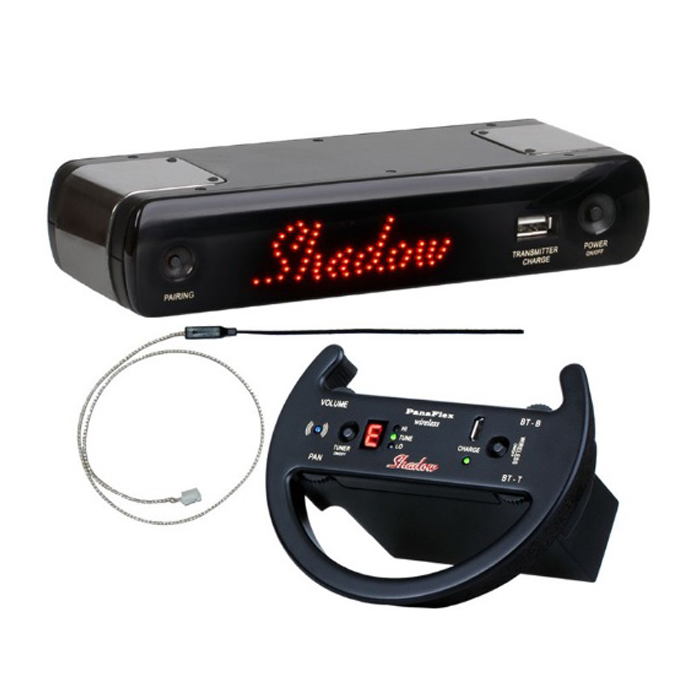

The Receiver
Of course you need a receiver to operate. On older analog wireless system it was more complex to choose and select a desired transmitting channel. Not here: With an easy push of the pairing button on transmitter and receiver both are "paired". With this easy method you can operate more than one transmitter at a time on the Shadow wireless receiver.
The receiver is powered by a simple USB power supply, well known as you probably already have for your cell phone. On the top of the transmitter is the location of the USB charge jack. You can connect the USB power supply to charge the internal LI-ION battery. Or you can use a cable between the front output of the receiver and the charge USB jack of the transmitter. All you need is to connect a USB cable "Type A to Micro A".
On the back of the receiver there are two outputs. One for the Mono/Stereo analog output and one for an optical digital S/PDIF output. The S/PDIF output can be used for other digital optical sound system e.g. your recording sound card or your computer. The S/PDIF output is best for recording because it delivers pure output of the stereo pickup.
Wireless Transmission
We built in a perfected digital transmission system which is able to transmit 2 channels simultaneously. There is no lost in sound quality during transmission.
The range is around 80m and this should be enough for huge stages as well.
The Battery
The integrated LI-ION battery has a capacity of 1100mA/h. This is good for an operation up to 5h. with one charge. The integrated charging system allows to connect modern cell phone power supplies with the ne mcior USB connector. After a charging time of 3-4h the capacity of the battery back to ~ 80% of the overall capacity. The battery (NP120) is a very common type which can be get for small money in almost every camera/camcorder accessory shop.
The Tuner
Push the tuner switch to operate the tuner. There are two modes. One with active wireless transmission the other without. This will save the battery.
The 7-segment display shows the played note. The Leds HI and Lo indicates if the string tune is to high or too low. When the middle Led OK is on, the string is tuned.
Specification
Stereo Sound delivered by the new Stereo-Panaflex? Pickup.
4 Controls to adjust Volume, Panorama, BT-B and BT-B
Automatic Chromatic Tuner
Leight weight LI-ION battery. Up to 5h playing with one charge.
Fast charge mode with nowadays standard USB charger (New micro USB plug for cell phones)
Only small modifications necessary on your guitar!
Perfect wireless range up to 80m in good environment
Automatic frequency-hopping-system for perfect wireless operation.
