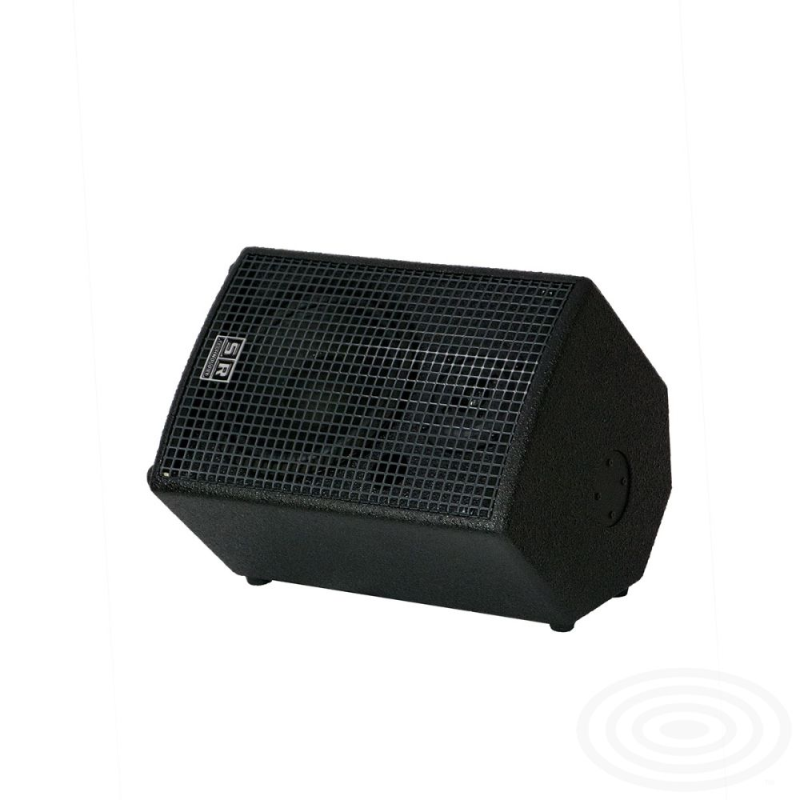

The ultra compact MON-X is an active loudspeaker providing a full 180W RMS output as standard. An active speaker output with Speakon connector is also provided for connection to a matching passive loudspeaker ( MON-X Sister ) to provide a further 180W of output. MON-X can be used in pairs for small/medium PA applications or standalone as a stage monitor. MON-X features a MIC input with volume control and LINE inputs with XLR and Jack 1/4. Highly effective 2 band EQ is provided that allows the user to personalize the sound to their specific requirements. A 40 mm-bored flange is fitted for use with a standard speaker floor stand. Special mounting brackets are also available for use in a range of fixed installation applications
Active version
Frequency response 40Hz-20KHz
Sensitivity (1W-1m) 94db
SPL max 118 db
Crossover Passive -18db/octave
System-format 2-way
Woofer 8" (SICA – Italy)
Horn Compression Tweeter
Coverage angle (W x H) 110 cm x 110 cm
Max Power Out 180 W RMS
Active Output Power 180 W 8 ohm
Connections XLR (MIC In); Jack 6,3 (Line IN); XLR (Line IN) LR (Direct Out); Speakon (Active Out)
Controls MIC Vol, LINE Vol, HIGH, LOW,round Lift Switch
Box Two-way bass reflex
Construction Plywood
Weight Kg 10 (22 lbs)
Dimensions (W x D x H) 26 x 27.5 x 37 cm. (10x11x14.5 inch)
Floor stand 40 mm.-bored flange on the bottom
