µÙéÅÓ⾧ Hi end ÃØè¹ HOME THREE

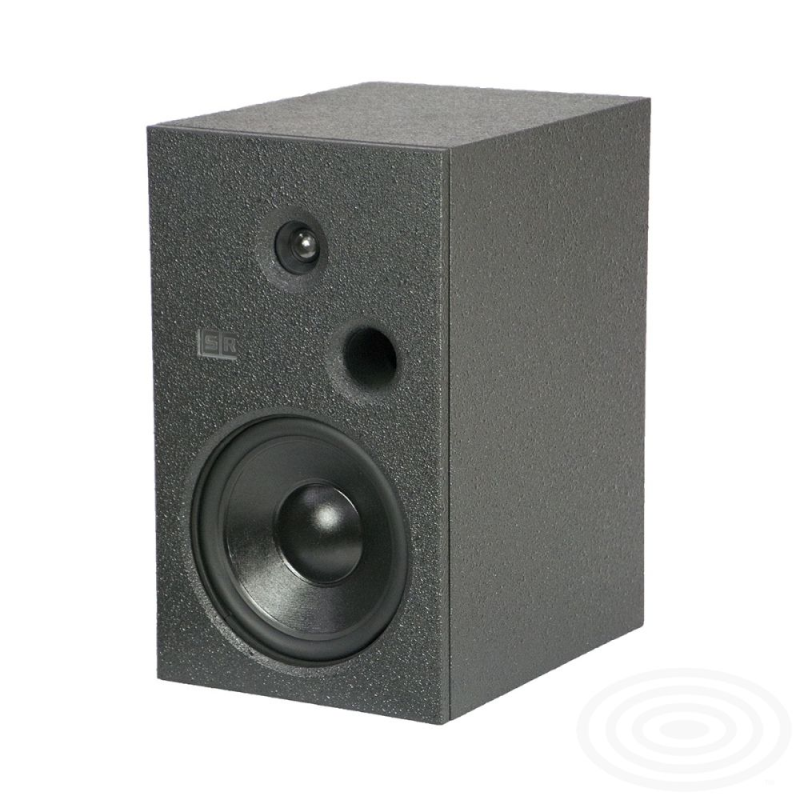

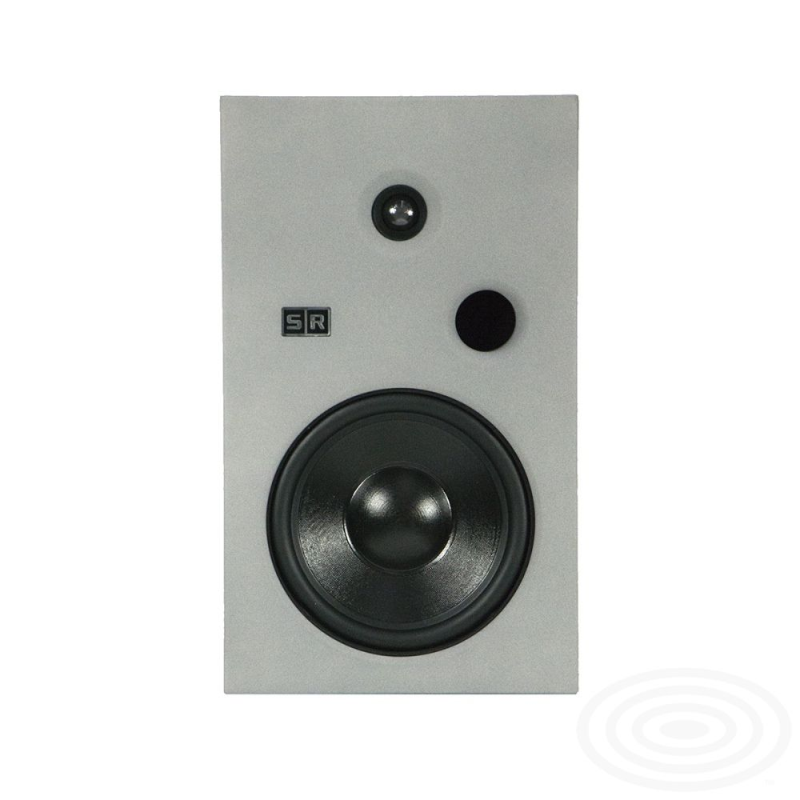

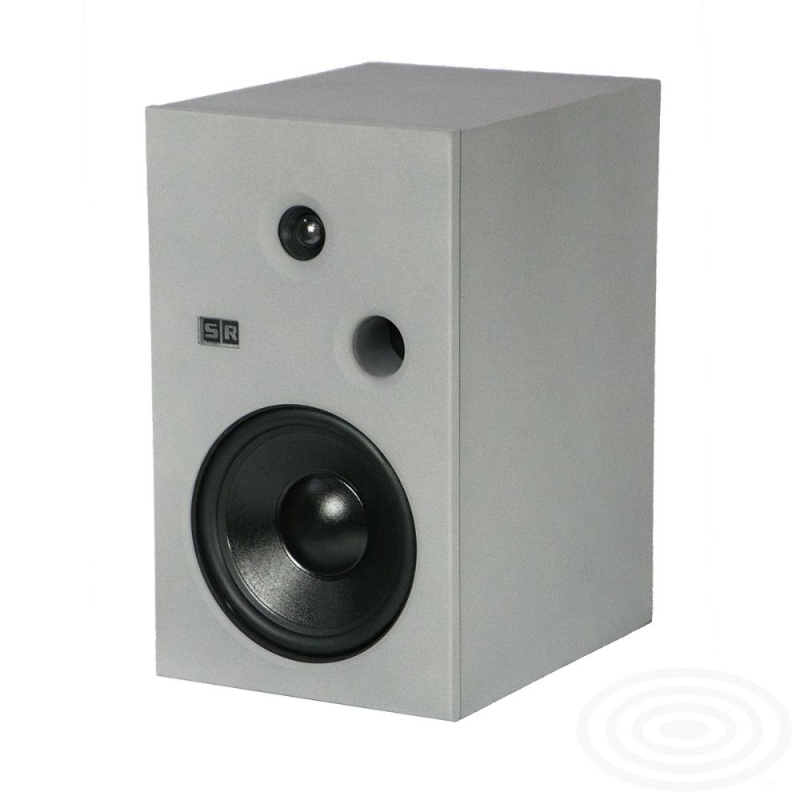

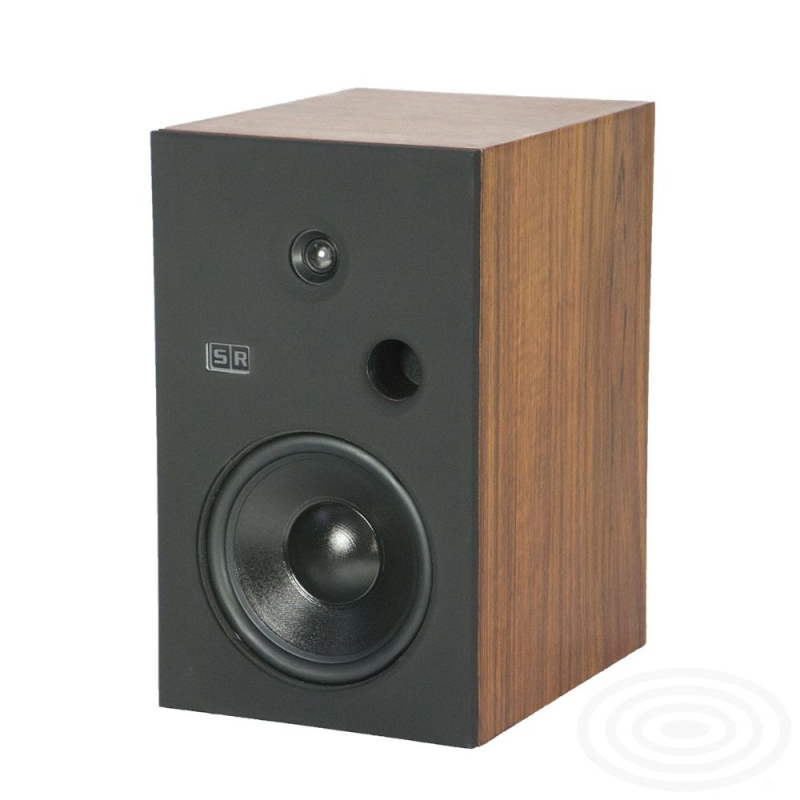

The 130W HOME THREE offers an impressive listening experience. Equipped with an 8” HiFi woofer and 1” dome tweeter, it brings power and warmth to your music. Perfect for analogue turntable and vinyl enthusiasts.
Specifications HOME THREE
Frequency response 50 Hz - 20 kHz (-3 dB)
Sensitivity @ 1W/1m 89.8 dBSPL
SPL max (calc.) 112 dBSPL
Crossover Passive - 18dB/octave
2.2 kHz
LF Transducer 8" HiFi Woofer
Nominal Impedance 8 Ohm.
voice coil diameter 38mm
HF Transducer dome tweeter 1" voice coil
aluminium former
Nominal Impedance 8 Ohm.
Power Handling 130W/260W (analogue)
(Continuous/Peak)
Connection XLR balanced input
RCA unbalanced input
Impedance 20 k Ohm. @ 1 kHz
in balance mode
10 k? @ 1 kHz
in unbalance mode
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
RCA -8 dBu (0.310 Vrms)
in unbalance mode
Nominal Impedance 8 Ohm.
(Passive)
Wall mounting Two metric M6 threaded
holes provided
Controls No control
Box 12mm Birch multilayer wood
Two Way Bass Reflex
with one flared end
Weight Kg 11
Dimensions (LxDxH) 247x316x414 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
