äÁâ¤Ã⿹äÃéÊÒ¤Ùè ẺÁ×Ͷ×Í SHURE SVX288/PG58
ÂÕèËéÍ: Shure ÃËÑÊ: ECMSVX288PG58
äÁâ¤Ã⿹äÃéÊÒ ẺÁ×Ͷ×Í SHURE SVX288/PG58 (ÊÓËÃѺ¾Ù´)
ËÑÇäÁ¤ìÅͪÑÇÃìá·é New Shure SM58 Capsule ¢Í§á·é¨Ò¡ USA
»ÃСͺ´éÇ SVX88 Dual Diversity Receiver 1 à¤Ã×èͧ áÅÐ SVX2/PG58 Handheld Transmitters 2 µÑÇ
SVX DUAL WIRELESS SYSTEM W/ PG58 MIC
The SVX Wireless Systems is the low cost option of Shure wireless system being engineered to maintain uncompromising Shure audio quality and performance.

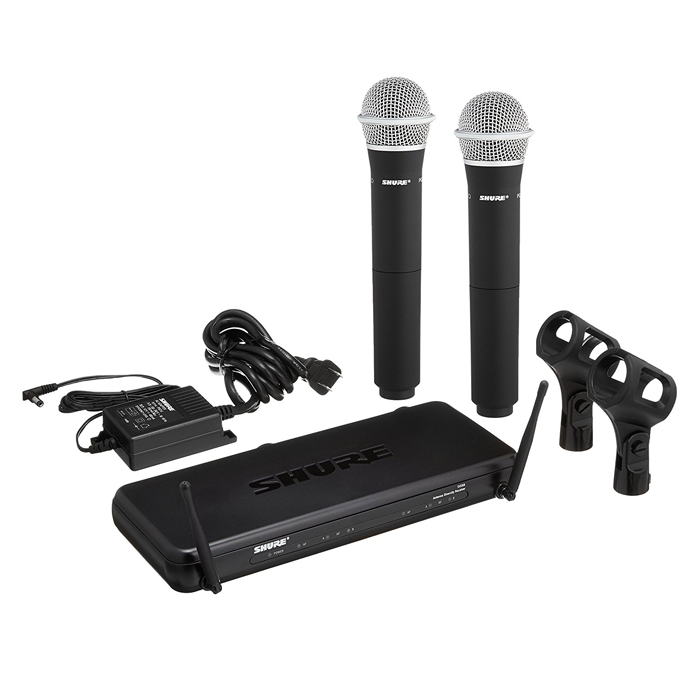

Includes SVX88 Dual Diversity Receiver, Two SVX2 Handheld Transmitters with PG58 Mic Head.

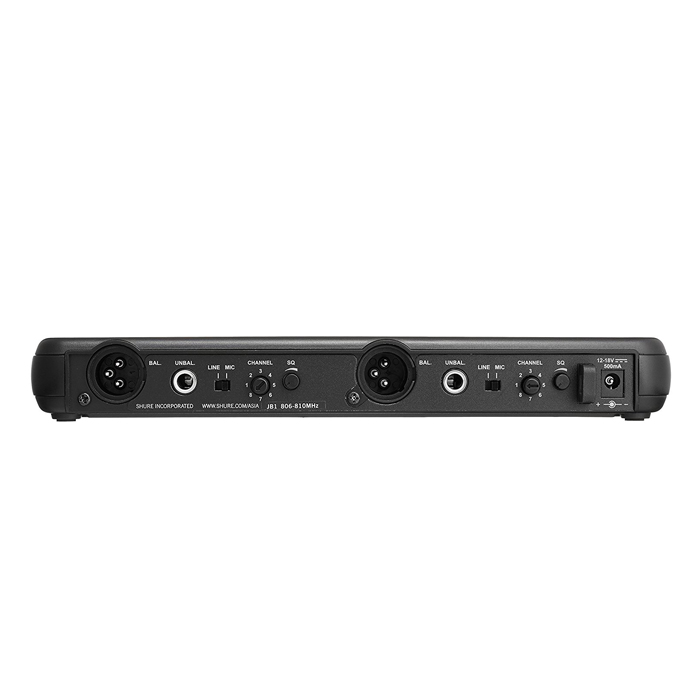

SVX DUAL DIVERSITY RECEIVER
The SVX Wireless Systems is the low cost option of Shure wireless system being engineered to maintain uncompromising Shure audio quality and performance.
The Shure SVX Receiver has single and dual channel options. The product is easy-to-use and easy-to-setup and features excellent audio quality and RF performance.
FEATURES
8 selectable frequencies per band
Up to 4 compatible channels per band
Offer two options: i) single channel diversity receiver; and ii) dual channel diversity receiver
Antenna diversity ensures continuous reception
Balanced and unbalanced audio output
Adjustable Squelch and Mic / Line Switch
Fixed antenna at front
External power supply

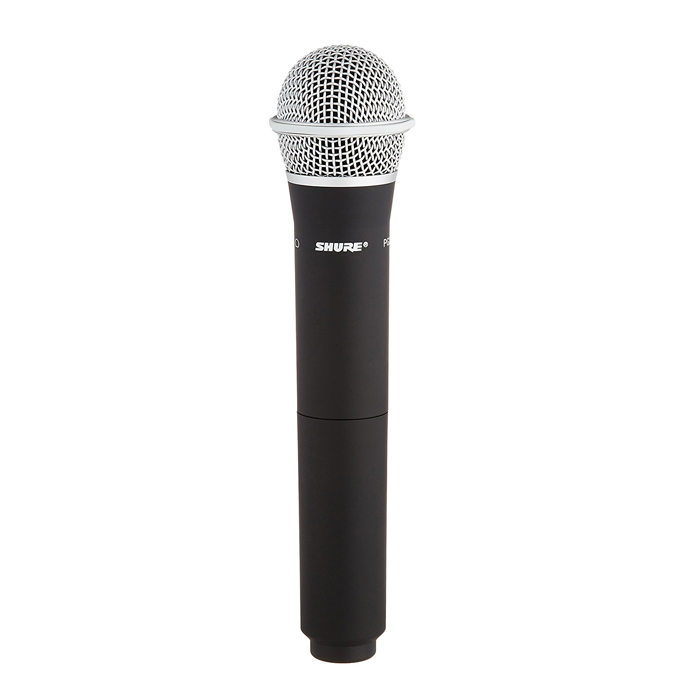

SVX HANDHELD TRANSMITTER W/PG58 MIC HEAD
The SVX Wireless Systems is the low cost option of Shure wireless system being engineered to maintain uncompromising Shure audio quality and performance.
The SVX2 handheld transmitter boasts a rugged, lightweight construction and easily accessible controls. The transmitter design allows for interchangeable microphone cartridges and is offered with PG28 and PG58 cartridge options.
FEATURES
2 AA batteries - over 10 hours continuous use
Selectable High / Low output power
a. High power mode
RF Output*: 10mW maximum Working range (Line of Sight)**: 75m (250 ft)
b. Low power mode
RF Output: 1mW maximum Working range (Line of Sight)**: 18m (60 ft) The Low output power is mainly decided for China KTV installation. It allows installer to easily reuse frequency band in short distance without interference by large number of channels at the same floor / multi-floor.
*dependent on applicable country regulations; **Actual range depends on RF signal absorption, reflection and interference
PG58
Vocal Microphone
Dynamic
Recommended Uses
Live Vocals
Karaoke
Available Options
PG58-QTR Includes 15’ (4.57m) XLR-to-1/4" Cable, Mic Clip, 5/8" to 3/8" Thread Adapter, Storage Bag
PG58-XLR Includes 15’ (4.57m) XLR-to-XLR Cable, Mic Clip, 5/8" to 3/8" Thread Adapter, Storage Bag
PG58-LC Includes Mic Clip, 5/8" to 3/8" Thread Adapter, Storage Bag
A rugged microphone tuned to accentuate the clarity of lead and back-up vocals.
FEATURES
Tailored frequency response is smooth and extended. Tuned specifically for vocal applications.
Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.
Cartridge includes a neodymium magnet for high output level.
Internal shock mount for reduced handling noise.
Durable metal construction.
On/off switch for onstage control.
Hardened steel mesh ball grille that resists wear and abuse.
Integral "pop" filter reduces explosive breath sounds and wind noise.
Includes 15ft (4.57m) cable, break-resistant mic clip and storage bag.
SPECIFICATIONS
Microphone Type : Dynamic (moving coil)
Frequency Response : 60 to 15,000 Hz
Polar Pattern : Cardioid
Output Impedance : EIA rated at 150 ohms (300 ohms actual)
Sensitivity at 1 kHz, open circuit voltage : 2.2 mV 1 Pascal=94 dB SPL Polarity : Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Net Weight : 321 g (0.71 lb)
Connector : Three-pin professional audio (XLR), male
Operating Temperature : -29 deg to 57 deg C (-20 deg to 135 deg F)
Relative Humidity : 0 to 95%
|
|
|
|
|
|
