µÙéáÍÁ»ìͤÙʵԡ Schertler ÃØè¹ Roy ¡ÓÅѧ¢Ñº 400 Çѵµì ÊÕ´Ó

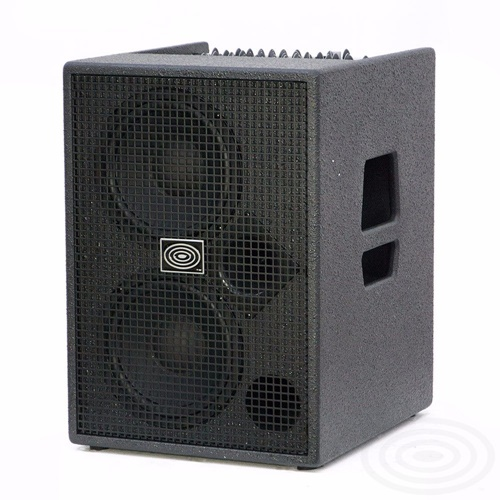

ROY - Schertler Group’s new top-of-the-range combo amplifier for acoustic instruments. This 400W, 7-channel amp provides a powerful yet comparatively lightweight system that is perfect for both stage and studio. Equipped with a 1” horn, two 8” subwoofers and featuring the same hi-end Class A preamp found in other Schertler amplifiers, ROY delivers the rich, high-quality sound that has become synonymous with this product family, while providing the user with even greater flexibility.

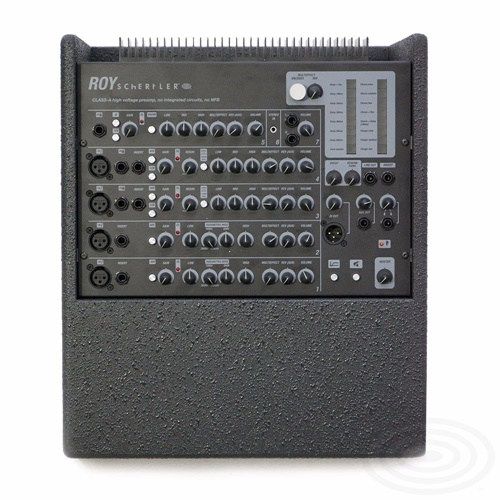

ROY has 4 input channels with various mic / instrument combinations, un i n s e r t (as on a professional mixer), 3-band EQ and phantom power; an additional unbalanced instrument input channel; a stereo input channel for playback devices and an FX return / additional input channel. ROY’s Master section includes both a digital reverb with decay and a new digital Multi-Effect (on a separate buss). This intuitive control surface provides a comprehensive mixing facility for easy set-up and on-stage adjustments during performances.
Highly effective as a stand-alone portable amplification system for soloists or small groups, ROY also offers a range of output options for connecting to external systems: Add a separate subwoofer to enhance the low frequency ranges of certain instruments, or to create a compact 3-way active PA system. Connect to a mixing console for larger-scale applications. The addition of a headphone preamp provides a handy monitoring facility for both live performance and recording applications, making ROY a powerful and practical “all rounder”.
Amplifiers are available in a choice of wood or anthracite finishes. The more delicate wood finish is perfect for studio or home use, blending with a range of room interiors. The anthracite finish is designed for performance and touring applications, where a more robust exterior finish is required.
Weight 22.2 kg (48.5lb)
Dimensions 35.7x41.5x51cm
Frequency Response 40 Hz to 20 kHz (+/-3dB)

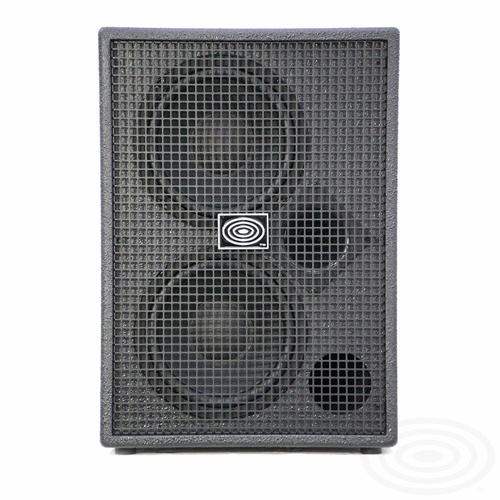

Speakers 1” dome tweeter, 2x 8” woofer
Construction Birch laminated
Channels 7 indipendent channels
Inputs Mic In (channel 1-4) XLR
Instrument In (channel 3-5) 6.3mm Jack
Stereo In (channel 6-7) 3.5mm Jack and 6.3mm Jack
Insert (channel 1-4) and on master
Outputs DI, LINE, AUX and Insert (channel 1-4) and on master
Phantom Power 10V on Channel 3-5, 48V on Channel 1-4
Effect Digital reverb with Decay and parallel Multieffect
Preamp Class-A
