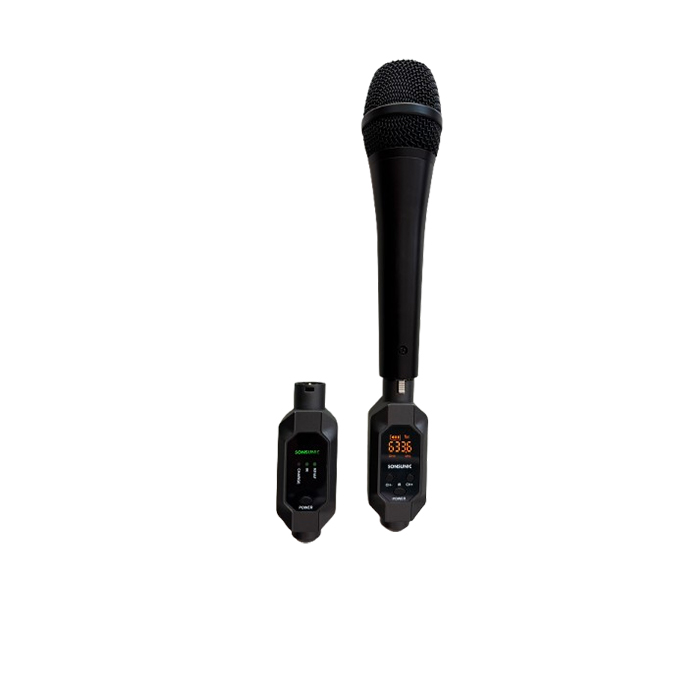

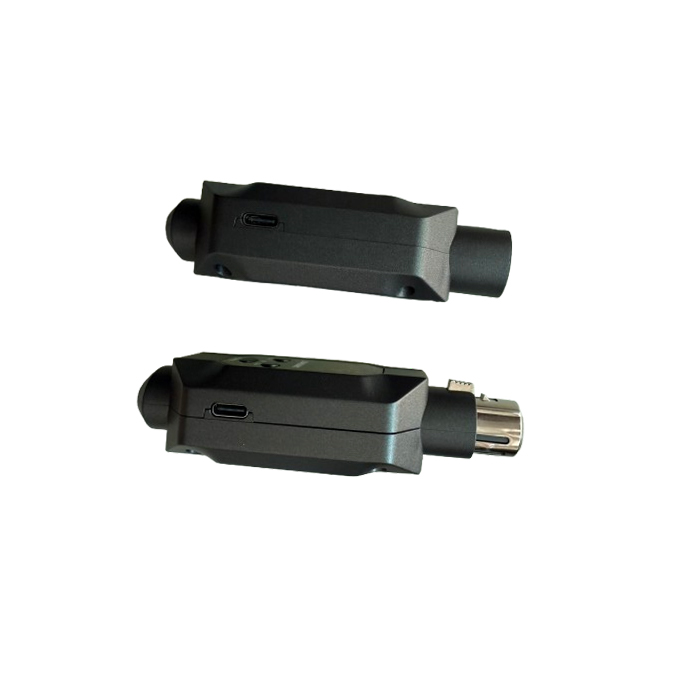

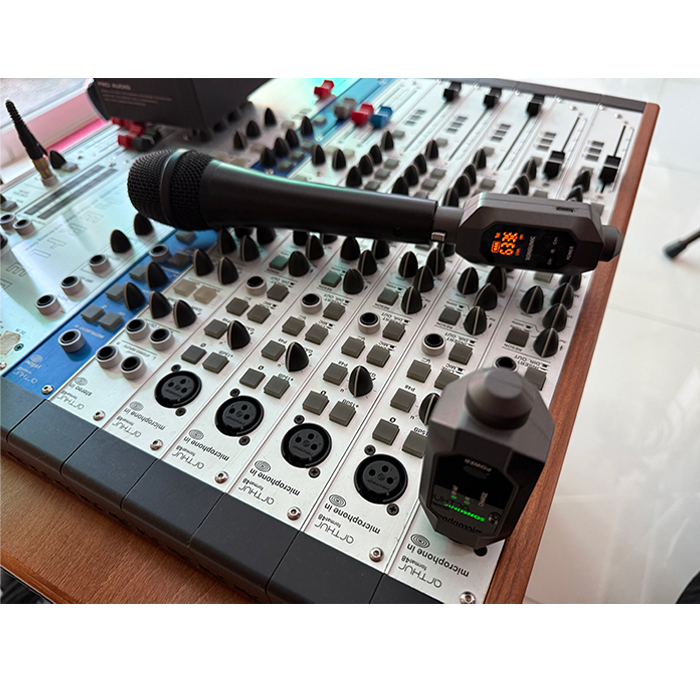

T-68 Wireless System
User Manual
WP-68 wireless system uses UHF frequency band (630-690MHz) to work. There are 100 available working channels for receiving and transmitting audio without delay. Stable working distance is more than 20 meters, using intelligent energy-saving circuit, it can work continuously for more than 7 hours. UHF band has the advantages of good signal transmission stability, wider available radio frequency bandwidth, anti-WIFI and Bluetooth interference. T-68 wireless system, with built-in rechargeable lithium battery and battery management system, can be intuitive observation of battery power.
The background noise is very low when working, suitable for stage performances, recording, outdoor bands, personal performances, teaching and other occasions.
With user management function, when the system detects that the user has not used it within half an hour, it will automatically shut down the power supply. As to avoid the situation that the battery is short of electricity at the critical moment.
Parameters:
Item
Transmitter
Receiver
Modulation Mode
Wide band FM
Signal Reception Mode
Single
Single
Frequency Range
630-690Mhz
Switching Bandwidth
60Mhz
Available Channels
200 Channel( new update)
Working Distance
20m Stable Working
RF Output Power
?+8dbm
Frequency Stability
10ppm
Signal-to-Noise Ratio
typ.105dB(A)rms
Total Harmonic Distortion
?0.5%
AF Freq Response
20Hz-18KHz ?3db
Max Audio Input Amplitude
1V
Receiver Sensitivity
-99 dBm
Lithium Battery Relay Time
7 hours/0V
4 hours/48V
7 hours
RF Power consumption
90 mA
Lithium Battery Capacity
800mA
Weight
32g
32g
Ambient Temperature
-10oC to +55oC
Synchronization Mode
Infrared Synchronization
Operating instructions for transmitter:
Power on/off
?Press and hold the “ POWER ”button for 1 second to turn on/off the transmitter.
48V phantom power
?In power-off state, hold the “ CH+ ”button and then press “POWER”button to switch between 0V and 48V.
?You will see “48”flash on the displayer when in 48V mode.
?You will see “0”flash on the displayer when in 0V mode.( new update)
?0V mode is applicable to dynamic mic.
48V mode is applicable to condenser mic.
Frequency selection
?In power-off state, press and hold the “ POWER ”button for 1 second to turn on the transmitter.
?At this time,
A: Hold on “ CH+ ” button and press “ POWER ” button, the frequency goes up.
B: Hold on “ CH-” button and press “ POWER ” button, the frequency goes down.
Infrared synchronization ( IR)
? For specific operation, please refer to the operating instructions of the receiver.
Power saving mode
?The transmitter will enter the power saving mode after 15 minutes without audio input.
Automatic shutdown function
?when the transmitter detects that the user has not used it within half an hour, it will automatically shut down the power supply.
Operating instructions for receiver:
Power on/off
?Press and hold the “ POWER ”button for 1 second to turn on/off the receiver.
Infrared synchronization ( IR)
?In power-on state, press the “ POWER ” button of the transmitter, The LED displays “ C---“ and emits an infrared signal.
?Put IR port of the receiver ( in the power-on state) close to the IR port of the transmitter.
?If “RF/AF” indicator flashes quickly and then lights up, infrared synchronization succeeds.
Automatic shutdown function
?when the receiver detects that the user has not used it within half an hour, it will automatically shut down the power supply.
Warn:
Keep the phantom power of the Mixer off to keep the receiver safe of the reiver.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
