µÑÇ¢ÂÒÂàÊÕ§ÊÓËÃѺàªÅâÅ STAT C ROAD
The STAT Series of contact microphones has been specially developed to bring out the best sound qualities of bowed stringed instruments in louder musical environments, or in amplified performance situations.

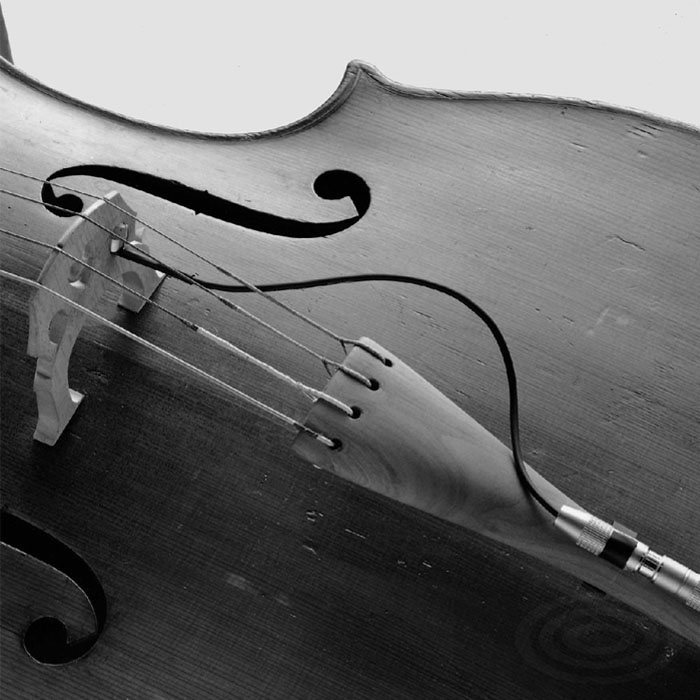

Schertler’s bridge-mounted STAT-C is perfect for cellists performing in loud musical environments. Designed to bring out the richness of the instrument’s lower register, it also produces clarity in the higher ranges. STAT-C is remarkable for its high resistance to feedback, making it an ideal system for rock, jazz or fusion performances with high levels of amplification. It also works very effectively with signal processors and effects units.

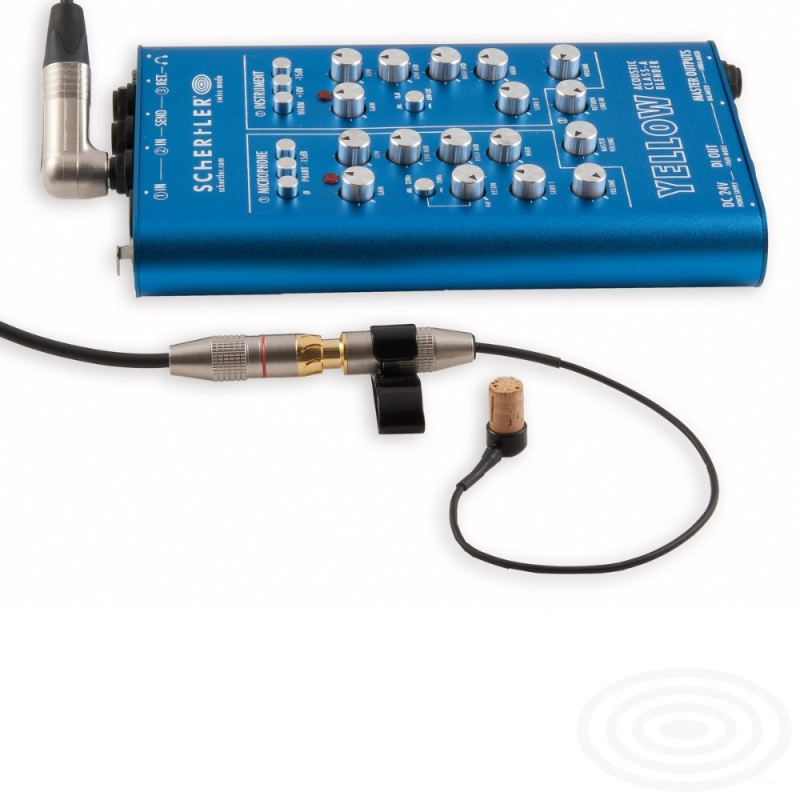

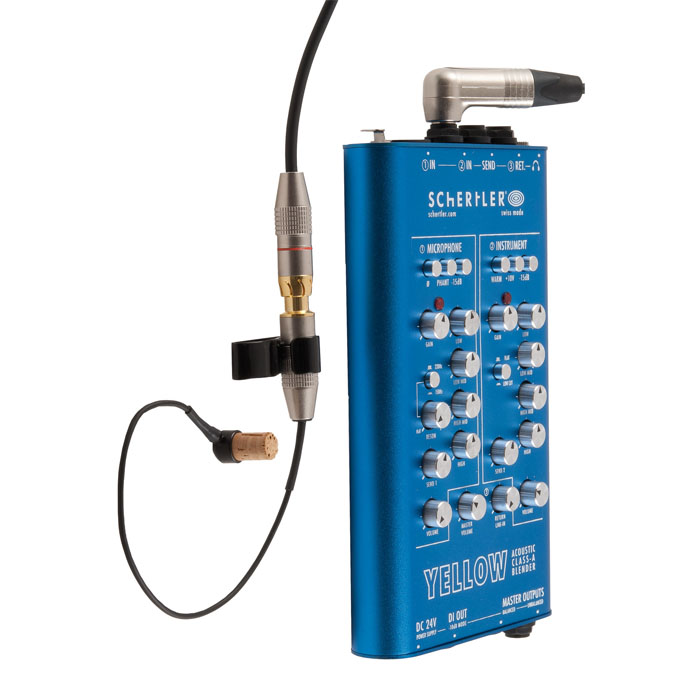

STAT-C-ROAD includes the contact microphone, putty, cable and Schertler’s sophisticated YELLOW BLENDER preamp with regulated AC power supply. The preamp enables players to control a range of parameters including gain, EQ and resonance.
Technical Specifications
STAT-C specs:
Nominal impedance 1.6 Kohm
Frequency Response 20 Hz to 12 kHz
Dynamic range 75 dB
Sensitivity (on instrument) ca. -25 dB
Temperature range -10? C to +50? C
Contacts Gold plated
Connection Chinch (RCA) to 1/4" jack
YELLOW BLENDER specs:
Weight 0.32 kg (0.68lb)
Dimensions 15x10x3.8cm (5.9x4.25x1.49 in)
Frequency Response 10 Hz to 25 kHz (+/- 3dB)
Construction Anodized aluminium box
Mic Input MIC IN: XLR balanced
Sensitivity: -56 dB
Impedance: 4.7 Kohm
LINE IN: 1/4" Jack
Sensitivity: -52 dB
Impedance: 3 Kohm with 10V on
Impedance: 200 Kohm with 10V off
RETURN/LINE input 1/4" stereo balanced Jack
Sensitivity: -30 dB
impedance 22 Kohm
EQ
4 band EQ + adjustable notch filter
warm and low cut
MASTER OUTPUTS XLR balanced, output level +20 dBu
Impedance 100 ohm
1/4" Jack unbalanced, output level +14 dBu
Impedance 100 ohm
DI output XLR balanced, sensitivity +5 dBu
Impedance 100 ohm
SEND output XLR balanced, sensitivity +5 dBu
Impedance 100 ohm
|
|
