ÅÓ⾧¾ÕàÍ STL1000A ¼ÅÔµâ´Â SR Technology
ÂÕèËéÍ: SR Technology ÃËÑÊ: SPA26

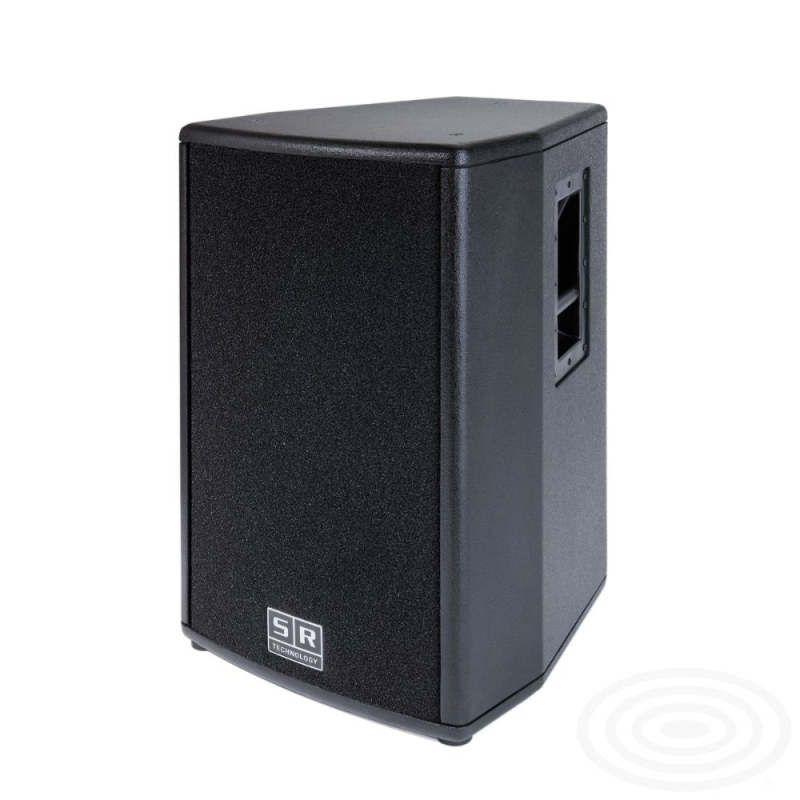

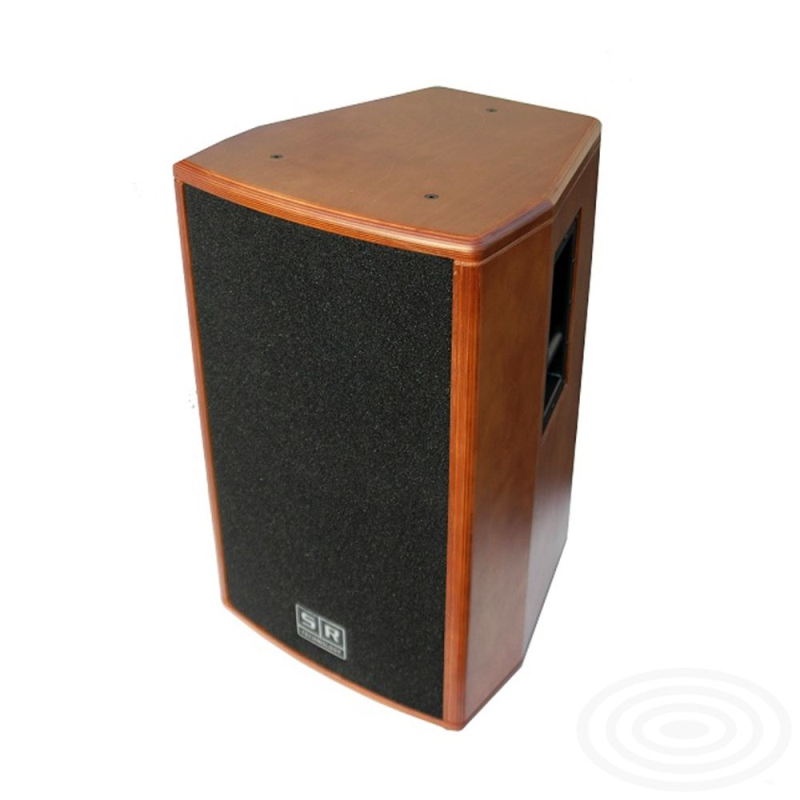

ÅÓ⾧¾ÕàÍ STL1000A ¼ÅÔµâ´Â SR Technology
The most powerful of the STAGE LINE series, perfect for large discotheques and outdoor concerts. STL 1000/A is a full-range 1000W RMS speaker, equipped with 3” horn (B&C) and 15” neodyme woofer (Eighteen Sound). Internal 200 W Mosfet amplifiers for the trumpet and 1000 W Class D switching (ICEpower? by Bang & Olufsen ICEpower) for the woofer. It can be used alone, thanks to the Physiocon2? processor which regulates equalization automatically and to the new TSS? processor which keeps the internal amplifier at maximum efficiency guaranteeing considerable sound pressure, or connected to the STW 1600/A subwoofer, with Physiocon2 disabled. The sound pressure (132 dB) and horn size with 60?x40? opening allow to reach considerable distances without sound regression. Thanks to the 7 M8 fixing points on the upper and lower panels and the sockets for the power “re-launches”, it is possible to create vertical arrays of up to 3 suspended speakers. The size is contained (46x48x75 cm) and the weight is just 40 Kg, decidedly little for an active speaker, in wood, of this power.
Box Two-way bass reflex
Frequency response 40 Hz- 20 kHz
Sensitivity (1W-1m) 101 db
SPL max 132 db
Crossover Electronic –18 db/octave
System-format 2-way Bi-amp
Coverage angle Horizontal 60? Vertical 40?
Woofer 15”
Horn 3”
Max Power out 800 + 200 W RMS
Connections XLR (Line in) + XLR (Line out)
Controls Volume (line), Ground lift switch, Physiocon switch 28x37x41 cm (11x14,5x16 inch)
Construction Plywood
Weight Kg 40 (88 lbs)
Dimensions (WxDxH) 46x48x75 cm (18.4x18.9x29.5 inches)
Fixing points 7 points
|
|
|
|
|
|
