¾ÃÕáÍÁ»ì STAT PRE ÊÓËÃѺà¤Ã×èͧÊÒÂ
ÂÕèËéÍ: Schertler ÃËÑÊ: EPB15
¾ÃÕáÍÁ»ì STAT ÊÓËÃѺà¤Ã×èͧÊÒÂ

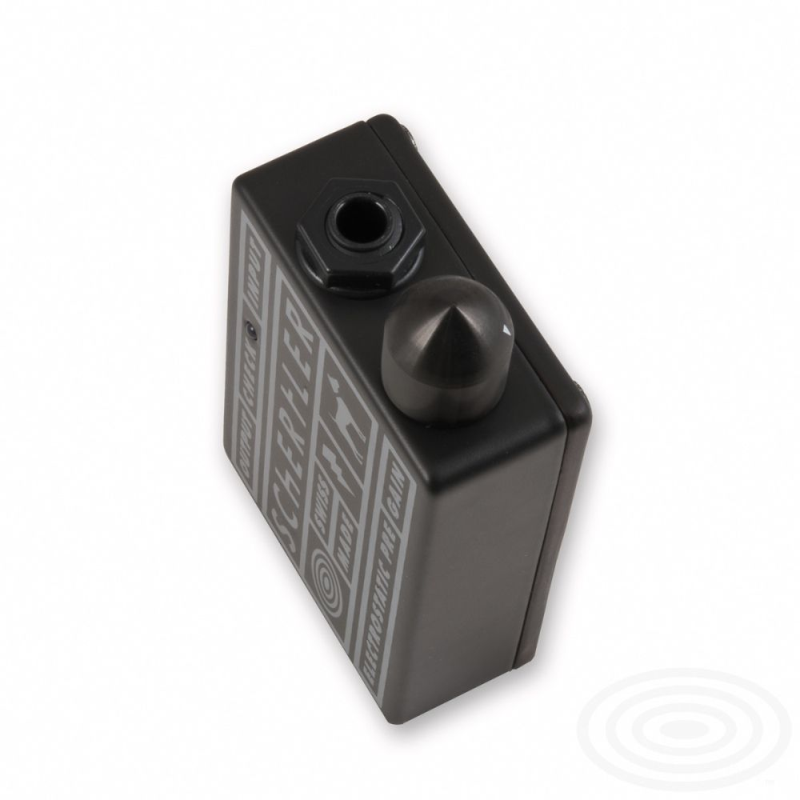

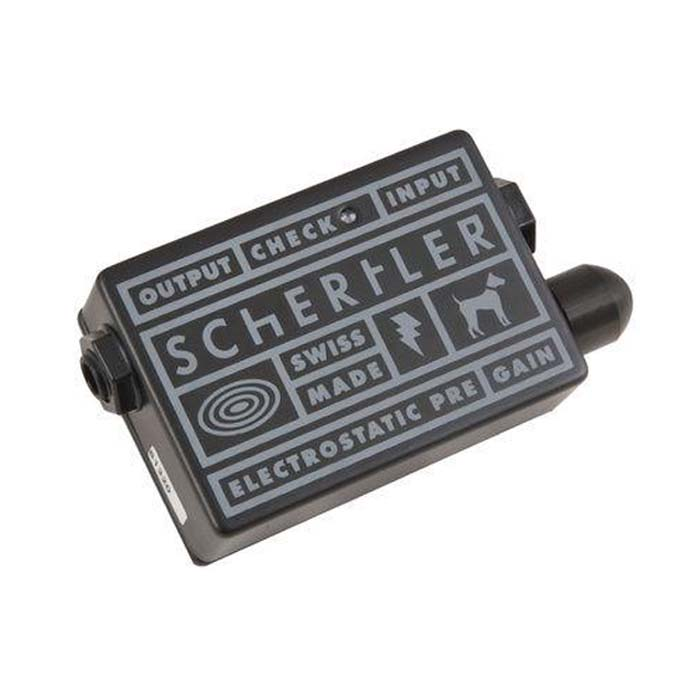

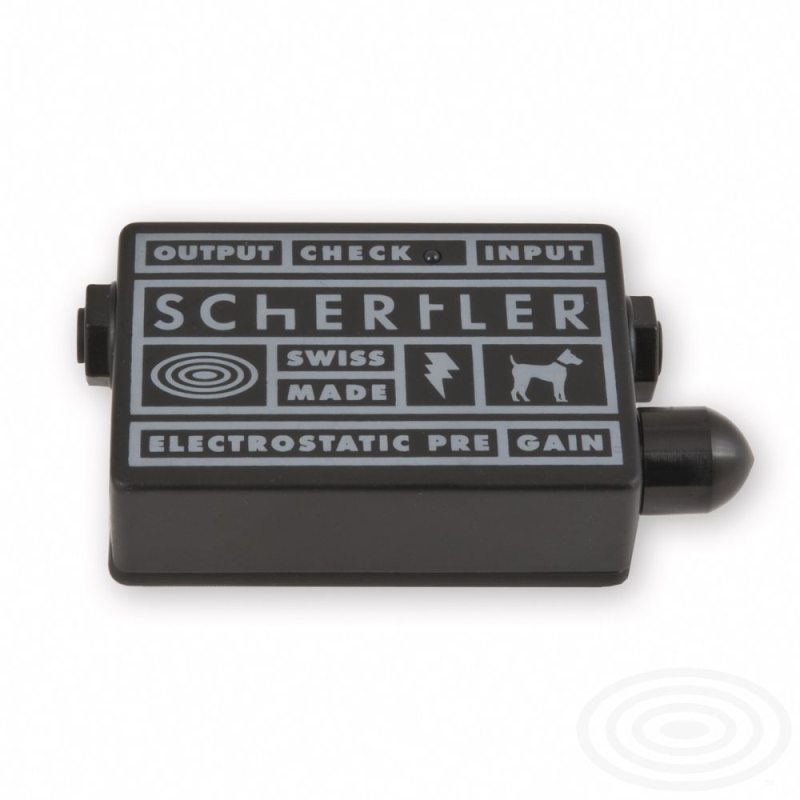

Schertler’s STAT-PRE preamp perfectly complements the STAT series of sensors for orchestral stringed instruments, as well as providing a convenient solution for use with other compatible active pickups.
Compact and easy to use, STAT-PRE ensures a faithful reproduction of the instrument’s sound while delivering nearly 500 hours of playing time from one 9V battery.
The preamp’s rugged aluminium case enables it to be positioned on the floor, or attached to the player using a belt clip.
TECHNICAL SPECIFICATIONS
weight 0.16 kg (0.34 lb)
dimensions 10.3x5.5x2.5cm (4x2.16x0.98in)
frequency response 40 Hz to 20 kHz (+/-3dB)
construction aluminium box
input jack unbalanced
nominal output level 0 dBu
maximum output level +8dB
maximum gain 18dB
maximum input level 0dBu
SN ratio 93dB
THD <0.06% at -10dBu
input impedance 25kOhm
output impedance 190 ohm
supply 9V battery
|
|
