ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 600 วัตต์ สี ANTHRACITE
ยี่ห้อ: Schertler รหัส: SPAE600A
ชุดลำโพงแอคทีฟพีเอ Schertler รุ่น ELYPS 600 วัตต์ สี ANTHRACITE

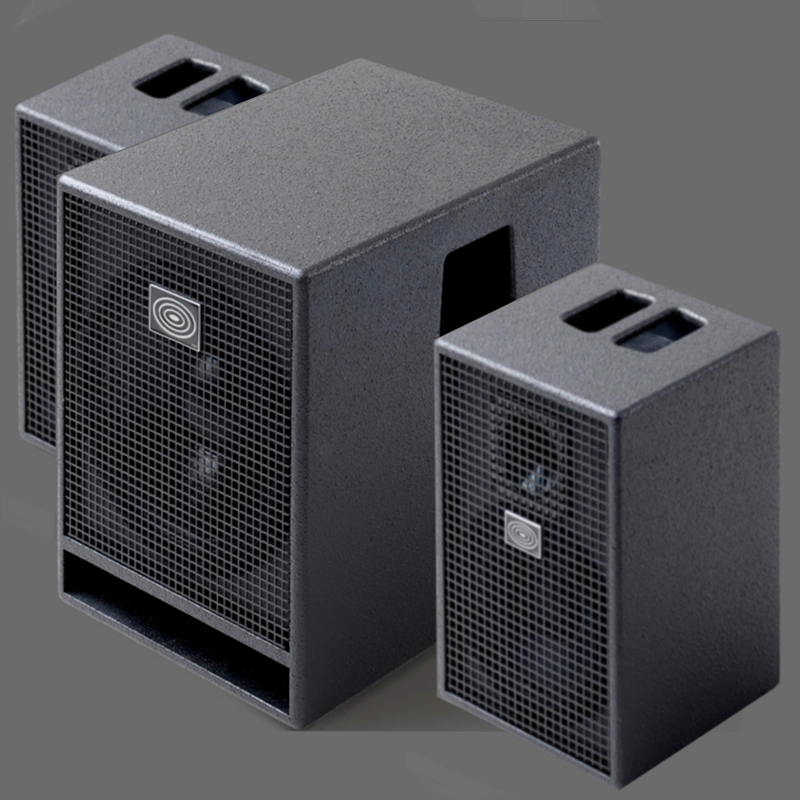

ELYPS 600 is a 600W (350+125+125) analog amplification system and that consists of a compact active subwoofer AB10 and two passive satellites PT6. It has been engineered for professional use.
The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil.
Easy to transport and set up in live performance situations, ELYPS 600 is ideal for use with acoustic instruments and in jazz or DJ sets. It's a highly-efficient compact PA system for use in small to medium sized venues such as piano bars, gyms, conference rooms, ballroom and theaters.
ELYPS is available in a choice of wood or anthracite finishes.

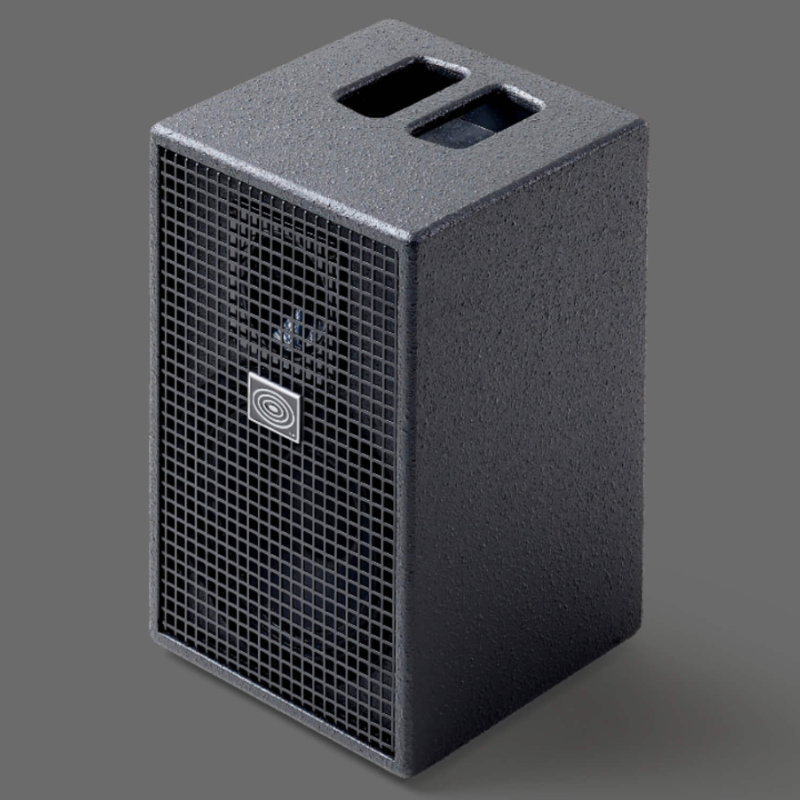

PT6
Weight : 6 kg (each)
Dimensions (LxDxH) : 21 x 24 x 34 cm (each)
Frequency Response (+/-3dB) : 150 to 20 kHz
Sensitivity (1W/1m) 1 kHz : n.a.
SPL Max : 113 dB
Speakers : 1 inch driver + 6 inch woofer (each)
Crossover : Passive - 18 dB/octave
Crossover freq. Cut : n.a.
Box constructionr : 12 mm birch BB laminated
Input connector : Speakon power input
Input sensitivity : n.a.
Input impedance : passive 8 Ohm
Output connector : n.a.
Controls : n.a.
Power : 150 W Pure analog power (each)
Stand mounting : Flange mount 36 mm, h=102 mm on bottom
Available versions : Light wood and anthracite

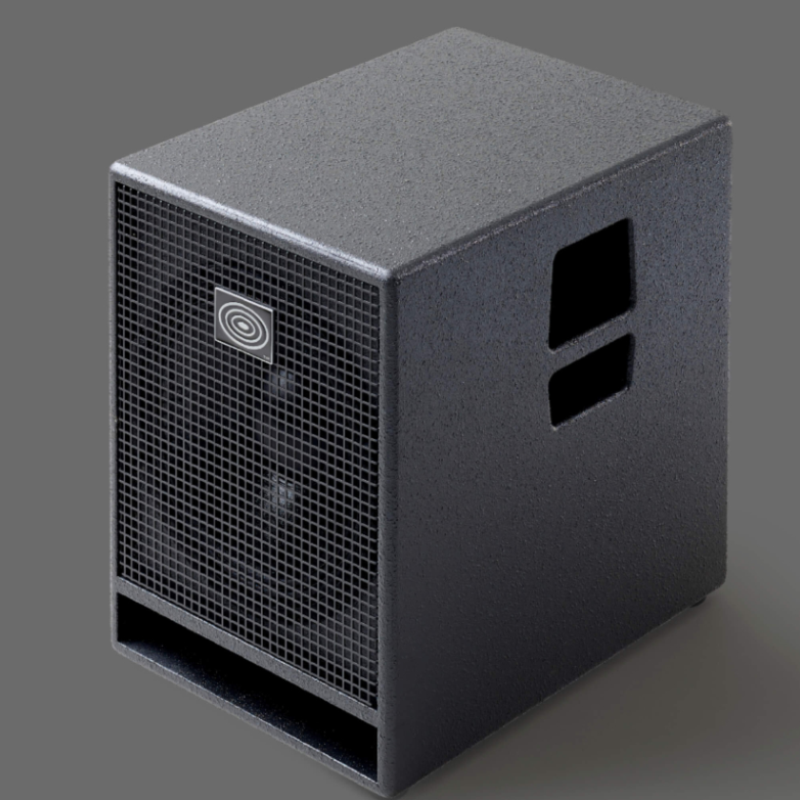

AB10
Weight : 18 kg
Dimensions (LxDxH) : 32 x 51 x 49 cm
Frequency Response (+/-3dB) : 50 to 150 Hz
Sensitivity (1W/1m)1 kHz: n.a.
SPL Max : 117 dB
Speakers : 10 inch woofer
Crossover : Active - 24 dB/octave
Crossover freq. Cut : 150 Hz
Box constructionr : 18 mm birch BB laminated
Input connector : XLR
Input sensitivity : 0 dBu
Input impedance : 10 k Ohm
Output connector : Speakon power output, XLR balanced parallel out
Controls : Volume + ground lift + mono/stereo
Power : 300 W Pure analog power
Stand mounting : Flange mount 36 mm, h=102 mm on top
Available versions : Light wood and anthracite
|
|
|
|
|
|
